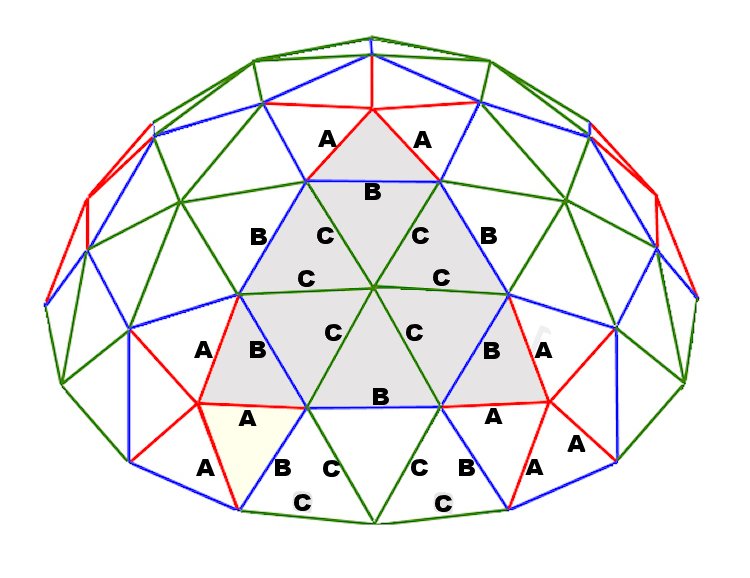

3v 3/8 Assembly Diagram
The same pattern is repeated 5 times. The greyed out area represents the core triangle.
Bend angles for pipe or EMT geodesic domes can be rounded to the nearest degree
Bend angles for timber domes should be rounded to the nearest tenth of a degree (or 1 decimal points)
For a 3V 3/8 geodesic dome you need:

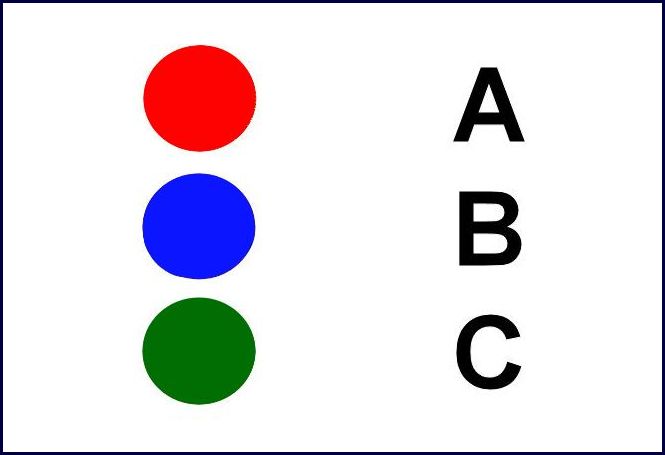

30 X “A” (ends bent or cut at 10.04°)
40 X “B” (ends bent or cut at 11.64°)
50 X “C” (ends bent or cut at11.90°)
