2V Assembly Diagram

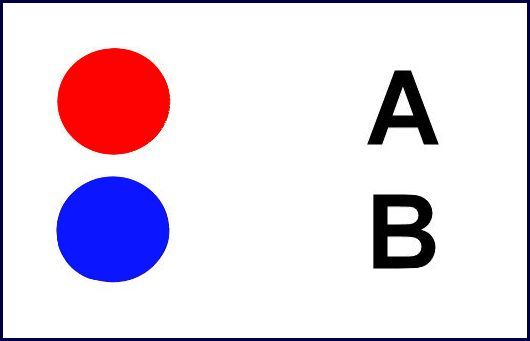

Note that each level is a single color (bottom is all blue, middle is red, top is blue).
Bend angles for pipe or EMT geodesic domes can be rounded to the nearest degree
Bend angles for timber domes should be rounded to the nearest tenth of a degree (or 1 decimal points)
For a 2V geodesic dome you need:
30 X “A” (ends bent or cut at 15.86°)
35 X “B” (ends bent or cut at 18.00°)
